HOME > SALES >ITEM DETAILS > SPRAYERS > SPRAY AND GROUT PUMP


To get a quote, see bottom of page for options. All merchandises are sold at the store only.

Model: STET-UP 120
CATALOG: 01-9000-122

This item is also available for
RENTALS   View Item

SPRAYERS

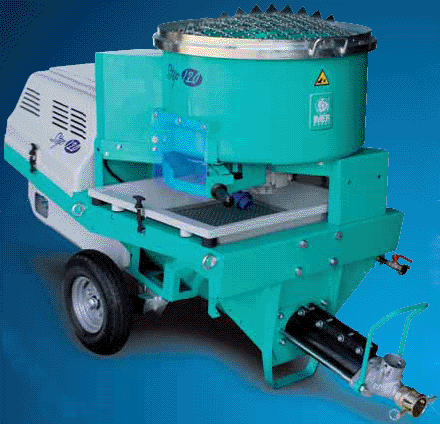

Spray and Grout Pump


High Performance Vertical Shaft Mixer and Screw and Stator Pump IMER USA unleashes the next generation of mediam sized pumps. The Step-Up 120 is ideal for those small to mid-sized jobs where a bigger more powerful pump is excessive, not cost effective or not practical because of power limitations. Modern Technology and Old School Quality at its finest.






SPECIFICATIONS
Make IMER
Model STET-UP 120
CAPACITY  Pump. Dist. Vert.50-200ft, Horiz.130-250ft
CUBIC FEET  Hopper Cap.4.2/Mixer Cap. 3.1
HEIGHT  50.2''
HP  Pump Motor 3, Mixer Motor 2
LENGTH  80.3''
TYPE  Electric
VOLTAGE  220 single phase
WEIGHT  870 lbs
WIDTH  32.2''




RELATED ITEM DOCUMENTS

For full specs click here

Video related to this product


ADDITIONAL COMMENTS
The Step-Up 120 is the bigger brother of the famous Mighty Small 50 Spray and Grout Pump.The Step-Up 120 is designed for the applications that need to be pumped and sprayed with more flow and pressure. A built in vertical shaft mixer sits atop the Step-Up 120 and discharges right into the pump for an easy and practical way to fill the hopper. The Mortarman 120 mixer which is mounted above the material hopper has a 220 volt 2 h.p. motor gearbox drive system, with this much power it will mix just about any material perfectly. As the mixer is powered by inverter technology it also runs in reverse, which is very helpful when material needs to be broken up.

The Step-Up 120 comes standard with an IM25L stator which can handle up to 3/8 inch aggregate and produce up to 6.6 GPM and 450 PSI of pumping pressure. The Step-Up 120 is made to be towed on the road, however, remove the axle, place the pump on a carpet dolly, and you can roll it through a 36" doorway! A dual diaphragm maintenance free compressor is used to provide the air flow for spraying applications.

The Step-Up’s rotor/stator is turned by a 3 HP, 220 volt single phase motor using inverter technology. The inverter provides smooth and continuous power even when the electrical source is not ideal. The inverter also aides in starting and controlling the frequency at which the pump operates. This allows the RPM’s to range between 30 and 100, enabling the Step-Up 120 to be used for numerous applications and materials.

The Step-Up 120 is designed to be an all in one unit with optimum mixer output delivering material into the hopper. It is easy to setup and easy to operate, and does not require special electrical connections or an electrician to hook it up. All the motors combined are just under six horsepower and can operate on 16 amps of 220 volt single phase power. Competitor’s pumps with similar output require either three phase power or 72 amps of single phase.

Small, light, easy to own and operate and able to handle 3/8 inch aggregate, the Step-Up 120 is the number one solution for your pumping and spraying needs.


RECOMMENDED SAFETY USE
CLOGING TIP:
Before use, prime unit and hose with a slurry of portland mix to avoid possible hose cloging while in use.

Unit can handle grout and even aggregate material, but not more than 3/8 of an inch in size. Call us for any other questions.
